WIF-Pro Mounting Box Dimensions
Flush Mount & Surface Mount
Choosing the right mounting option for your WIF-Pro system is easy when you know the dimensions and space needed for installation. Here’s a quick guide:
Flush Mount Cut-In Box

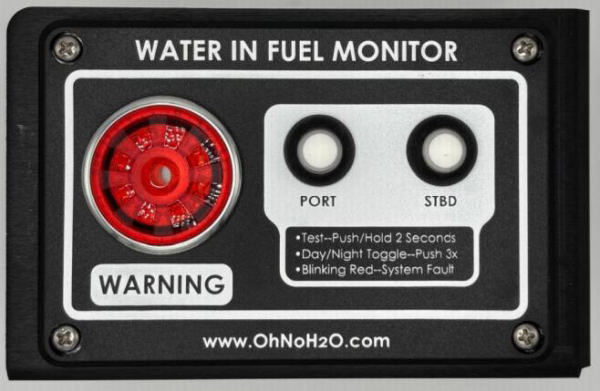

- Faceplate size: 4.75” wide x 3.5” high
- Cut-out hole size: about 4.25” wide x 2.25” high
- Depth (including connectors): 4.75” deep
- Extra clearance needed: Allow about 3 more inches behind the box for cabling to connect straight in.
Best for a clean, built-in look where space is available behind the panel.
Surface Mount Box

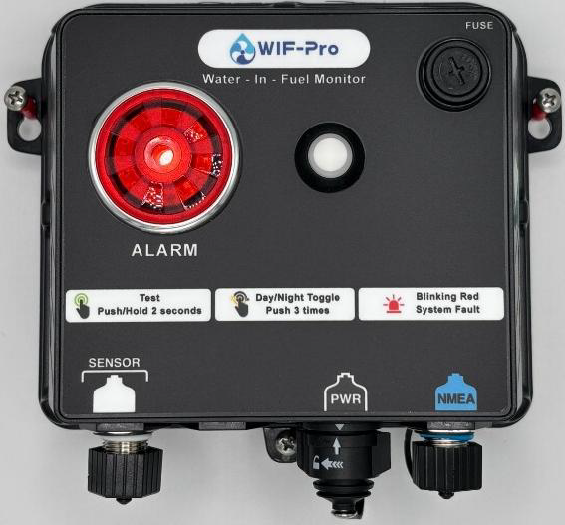

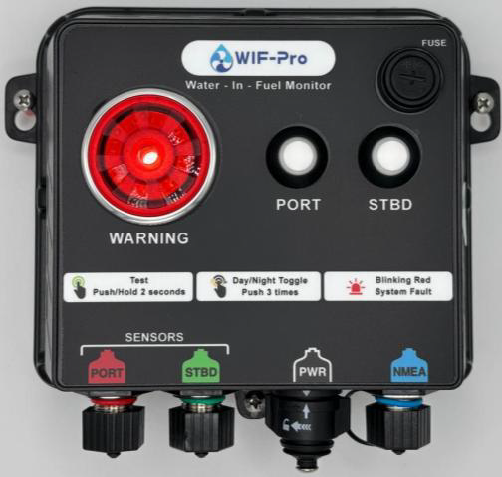

- For 1–2 motors: 5.5” wide x 5.5” high x 2.25” deep

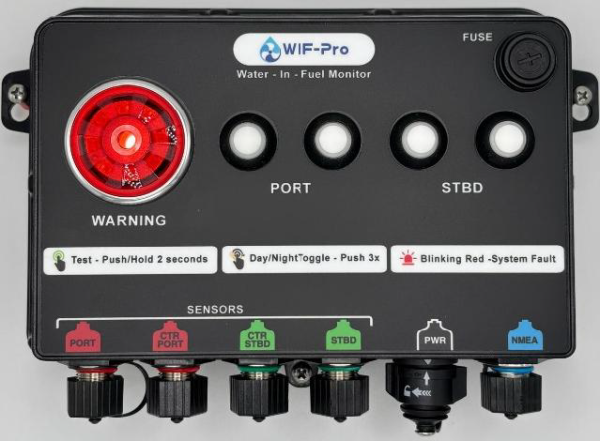

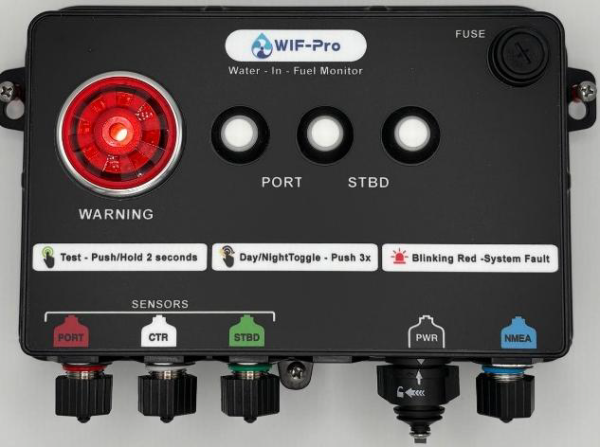

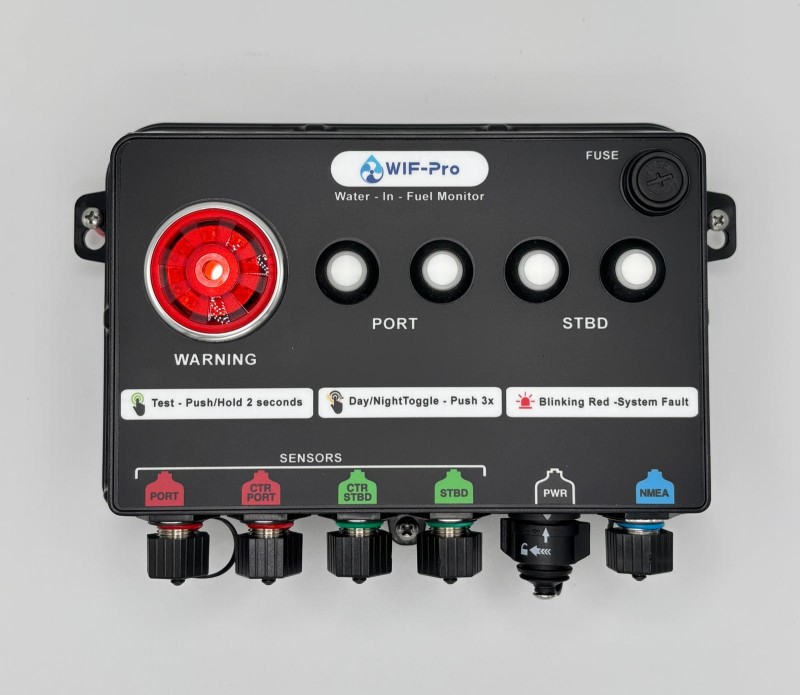

- For 3–4 motors: 7.5” wide x 5.5” high x 2.25” deep
- Clearance note: The 5.5” height includes the connectors at the bottom. Allow about 3 extra inches below the box for cable connections.
Best for simple installation on flat surfaces when a cut-in mount is not practical.
Quick Comparison: Flush vs. Surface Mount
| Feature | Flush Mount Cut-In Box | Surface Mount Box |
| Appearance | Sleek, built-in look | External box mounted on surface |
| Faceplate / Front Size | 4.75”w x 3.5”h |
5.5”h x 5.5”w (1–2 motors) 5.5”h x 7.5”w (3–4 motors) |
| Cut-out Hole Size | 4.25”w x 2.25”h | Not required |
| Depth (with connectors) | 4.75” (plus 3” extra clearance behind) | 2.25” (plus 3” extra clearance below) |
| Best Use Case | When you want an integrated, hidden finish | When you prefer quick and easy installation |
